TSB · Series vehicle

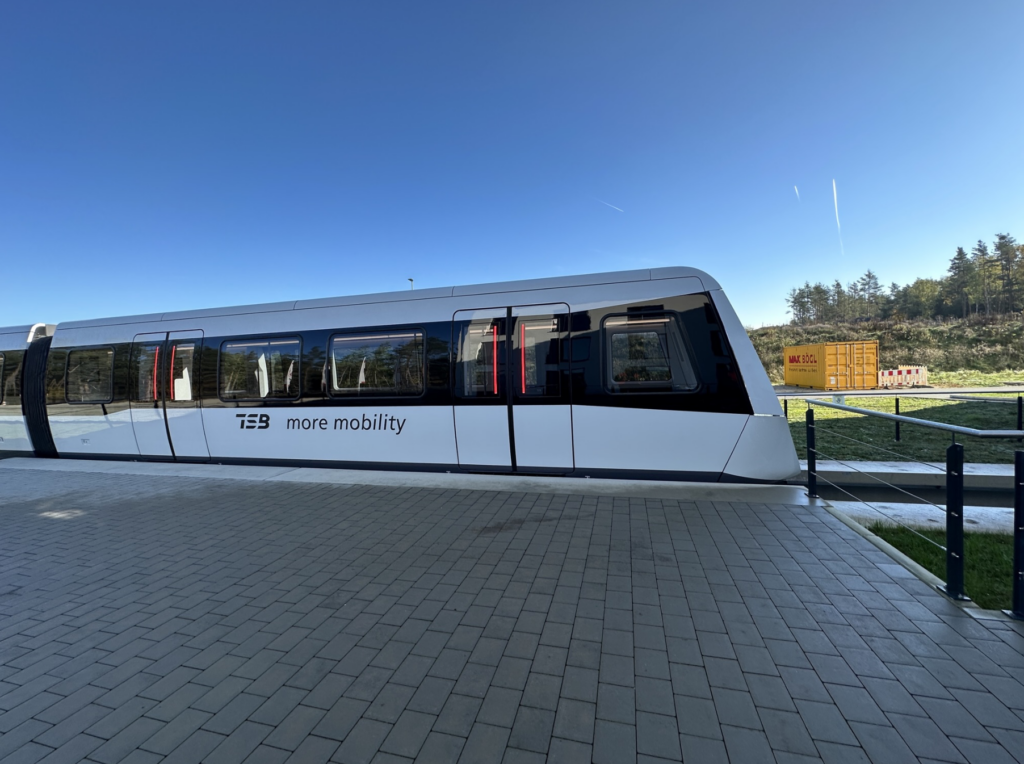

TSB (Series Vehicle)
The series vehicle is the second generation of the Transport System Bögl. In February 2021 it reached 169 km/h in Chengdu.
Overview
In-house development with a short stator
The TSB is not a Transrapid, but Bögl's own maglev for urban transport.
The TSB (series vehicle) is not a Transrapid derivative but a completely independent development by the Max Bögl group of companies. The most striking difference is the short-stator drive: the motor sits in the vehicle, not in the guideway.
The vehicle runs on 750 V direct current and levitates with a 7 mm air gap, compared with 10 mm for the Transrapid. In February 2021 it reached 169 km/h in Chengdu; read more in the news item TSB breaks 169 km/h.
Key facts
- Year built
- 2019–present
- Operation
- Demonstration operation
- Company
- Max Bögl group of companies
- Route
- no scheduled line yet
- System
- Asynchronous short-stator linear motor
- Air gap
- 7 mm
- Rated speed
- 160 km/h
- Top speed reached
- 169 km/h
- Capacity
- 127 passengers per section
- Length
- 12 m per section
