Transrapid · Test vehicle

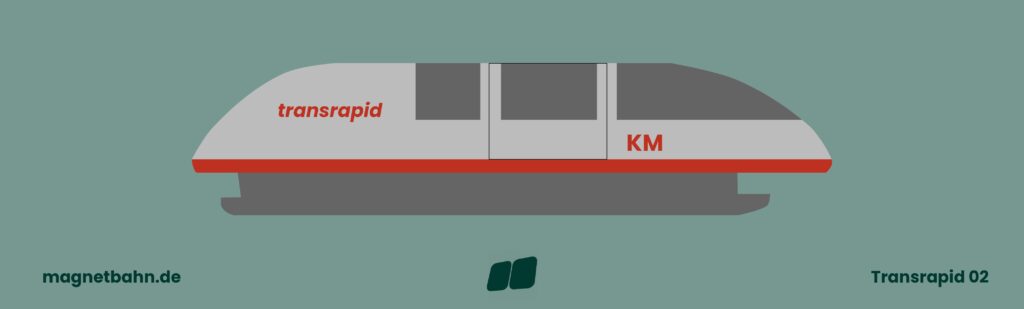

Transrapid 02
With the Transrapid 02 in 1971, development moved from a model to a vehicle with seats. On the test track in Munich-Allach, it reached 164 km/h.
History
From model to test vehicle
164 km/h, as early as 1971, with eight seats on board.
After the small levitation model TR01, Krauss-Maffei built its first real test vehicle, the TR02. It had eight seats and ran on a 930-meter track in Munich-Allach.
The TR02 was powered by an asynchronous short-stator linear motor, meaning the drive was located in the vehicle. It was designed for 150 km/h and reached 164 km/h.
Key facts
- Year built
- 1971
- Operation
- 1971–1973
- Company
- Krauss-Maffei
- Route
- 930 m TR02/03 track, Munich-Allach
- System
- Asynchronous short-stator linear motor
- Air gap
- 15 mm
- Rated speed
- 150 km/h
- Top speed reached
- 164 km/h
- Vehicle units built
- 1
- Empty weight
- 10.7 t
- Payload
- 600 kg
- Seats
- 8
- Standing room
- –
- Length
- 11.7 m
- Width
- 2.9 m
- Height
- 2.4 m
Fate
- Location
- scrapped
